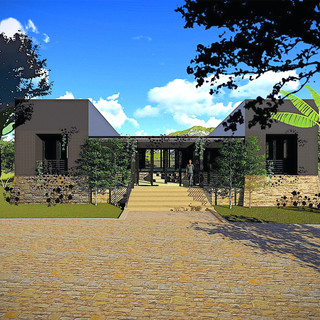

This Hobbit Inspired House is a modern farmhouse with an efficient floor plan with (2 or 3) bedrooms, 2 bathrooms, roomy living with a fireplace or stove, kitchen with separate pantry, + a study that can be used as a 3rd bedroom, storage loft, laundry room, etc. The sunroom porch is perfect for entertaining outdoors.



2 + study or 3 Bedrooms

2 Bathrooms

150sf Loft Space

2,125sf, heated

200sf sunroom porch

26’ X 75’ building footprint

Domed ceiling/ 14’ ceilings at center

Pantry

Laundry Room

​

Includes a proven waterproofed and insulated cement exterior wall system for mold mitigation, enhanced indoor air quality, and superior energy performance. Includes a passive component orientation and thermal mass for energy reduction.



This House Plans is designed to meet IECC requirements for climate zones 1-4 and seismic zones A and B. Utilizing these plans outside of these zones can be addressed through custom modifications at an hourly fee.




1. Pricing Set:

11”x17” PDF of the Basic Floor Plan with Door and Window Schedule

Roof Plan with Structural Details

Exterior Elevations

Building Sections

Foundations Plan and Section Details

Structural Steel Placement Details

Suggested Lighting Plan

Suggested Electrical Power Plan



A Site Plan is usually required by building departments showing your building site location, boundaries, orientations, power, water, sewage, gas and road information. When required this can be developed through custom modifications at an hourly fee. This is an informative set to discuss with your builder, your building department, and your financial institution. This set will be labeled “Not for Construction”. When all adjustments are made and a one time use contract agreement is signed and all fees are paid a larger 24”x 36” PDF of the full set of these drawings will be sent.

​

2.   The full construction document permit applications can be adjusted to your specific building site and engineering calculation and seals can be applied (if required) for additional fees which varies by state and project size. When you are ready to apply for your building permit you will need to purchase our “License to Build”: This is a license agreement between you and us to build this design only one time. Once the agreement is signed, and all fees are paid we remove our “not for construction” label from your Construction Document Set with construction notations and specification so that you can work with your local builder, or as your DIY project, or using our traveling concrete building crew and apply to your building department for permitting. This license entitles you to build the proposed design (1) time.

​

3.  If additions are required by your building department to give you your building permit this team can develop the additions requested on an hourly fee basis. A few examples of other items your building might request may be a fire sprinkler plan, a septic plan, a well plan, a road plan, energy calculations, drainage plan, specific plumbing diagrams, etc. Every building department is slightly different. This team discusses with you the best strategies available when additions are requested.



4. A healthy home specification list is included on creating a living space that is Dry, Clean, Safe, Ventilated, Pest-free, Contaminant-free, and Well-maintained, filtering for good indoor air quality, safe filtered water, effective moisture and dust control, proper insulation, adequate lighting, sealed weather protection and non-toxic materials to prevent injury and illness. Key areas include air quality, moisture control, pest management, safety smoke/CO/radon alarms, contaminate free, and using healthy building materials inside and out.



5. We recommend talking to us before purchasing a plan. We offer 2 hours of free consulting before charging our hourly rate to customize this plan to your specific requirement. Schedule a free consultation at BuildEarthShelter@gmail.com. send your phone number and a  good time to call you. We will confirm and call you then.

​

DIMENSIONS

• Width x Depth: 75'0" x 29'0"

• Height: 14’

• PLATE HEIGHTS: Main Floor: 9.0'



CONSTRUCTION

• Ext. Wall Construction: Fire Resistant Poured Reinforced Concrete- 10” walls and 2x4 stud  interior walls, extensive insulations, waterproofing and sealing tape

• Roof Framing: Stick and Truss and waterproofed insulated concrete

• Thermal Pane Insulated Doors and Windows



STYLE / INFLUENCES

• Modern Hobbit English Country

​

KITCHEN FEATURES

• Island, Large Pantry, Bar Seating, Deluxe Appliances

​

PRIMARY BEDROOM FEATURES

• Bath Tub, Shower, Sink, Private Toilet, Walk-in Closet, Sitting Area, Study

​

ADDITIONAL FEATURES

• Patios, Fireplace, Entry Foyer, Trellises, Arches, Stone Veneer, Pergola

​

PRICES FOR THIS EXISTING  PLAN

(Custom plans costs are more. Based on time required to develop):



Modern Hobbit House Plan 11”x17” PDF Pricing Set (Not for Construction): $200



Modern Hobbit House Plan 24”x 36” PDF Pricing Set + License to Build: $1500



Possible to get a full set of Construction Documents ready for your building permit applications on this plan for less than $2000!



Customization Labor Rate is $80 hourly for time spent on your projects with deposits made and after discussing what additions you might require.



Engineering calculations and seals on your plans for building permit applications (when required) can be arranged and bid after completing the plans for your project and adapted to your building site.
